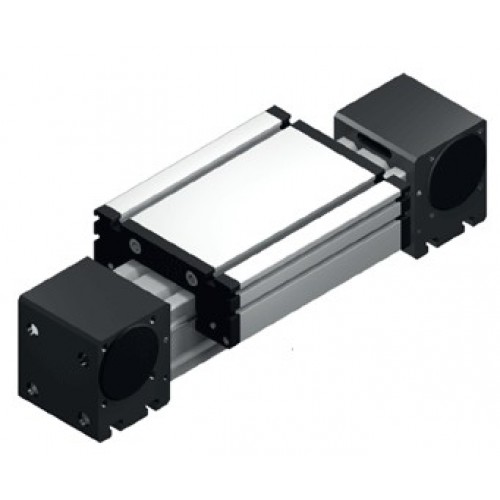

Non-Driven actuators are intended to be with either a screw or belt driven actuators, providing linear support over an extended width. Used in conjunction with the ELZ and MLZ Series

ELRZ Actuators are available in multiple configurations;

• Single Carriage
• Single Wrap Around Carriage (WAC)
•

  	Details	Forces and Torques
  Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
  ELRZ 30 WAC
  	30	-	60	60	5	6	7	-	90	90	10	13	14
  ELRZ 40 WAC
  	40	-	700	650	20	18	25	-	1200	900	25	32	35
  ELRZ 60 WAC
  	60	-	2000	1100	43	70	100	-	3000	1700	67	90	120
  ELRZ 60S WAC
  	60S	-	3100	1600	65	140	170	-	4100	2160	88	190	230
  ELRZ 80 WAC
  	80	-	2000	1100	55	80	120	-	3000	1700	90	110	150
  ELRZ 80S WAC
  	80S	-	2600	1800	140	230	220	-	4600	3000	170	270	300
  ELRZ 100 WAC
  	100	-	6500	2200	230	270	500	-	8000	3600	300	400	750
  ELRZ 125 WAC
  	125	-	9000	4500	1450	600	1150	-	12000	6000	600	750	1350
