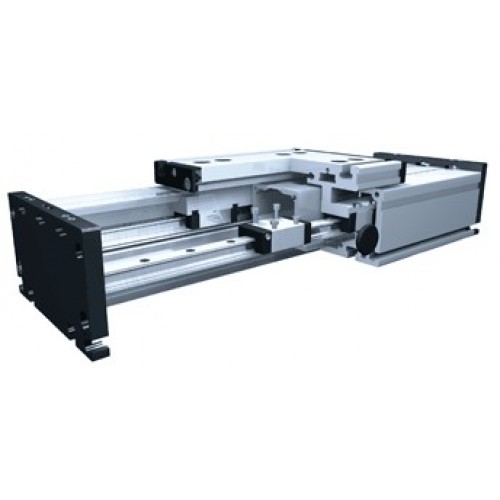

Nook NON-DRIVEN MODULAR ACTUATORS DSR

DSR Features

Non-Driven actuators are intended to be with either a screw or belt driven actuators, providing linear support over an extended width. Used in conjunction with the DST/DSK

DSR Actuators are available in multiple configurations;

Standard Carriage Length
Multiple Extended Carriage Lengths

	Details	Speed	Forces and Torques
Product	Size	Speed Maximum [m/s]	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
DSR 120
	120	5	1405	1650	64	77	76	1776	2090	81	97	96
DSR 160
	160	5	1775	4189	224	225	238	2236	5278	282	283	300
DSR 200
	200	5	4092	8977	597	646	684	5155	11311	752	813	862
