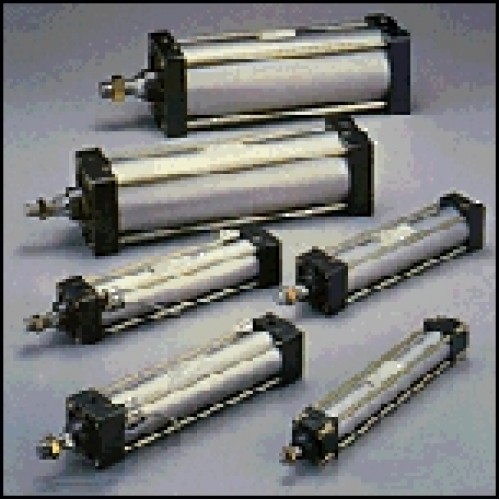

Taiyo Pneumatic Cylinder Space-saving General Purpose 10A-6 Series Pneumatic Cylinder/Bore 32 to 125mm

Cushion valve of new type adopted.
Floating packing adopted for cushion.
Large size sintered oil-impregnated copper alloy bearing adopted.
Fitting boss adopted for rod cover and head cover.
Rod diameter of general-purpose size in Japan adopted.
For rod seal and piston seal, JPAS Specifications adopted.

Standard Type

Click the icon as follows, to check the details.

Structure	Action Style	Bore Size(mm)
		32	40	50	63	80	100	125
Double-acting Type Single Rod	Standard Type/Switch Set 10A-6
	Val Set/SV Set 10A-6V	-						-
Double-acting Type Double rod	Standard Type/Switch Set 10A-6D
	Val Set/ SV Set 10A-6VD	-						-
With Stroke Adjusting Function (Pull Side)	Standard Type/Switch Set 10A-6A2
	Val set/SV Set 10A-VA2	-						-
With Stroke Adjusting Function (Push Side)	Standard Type/Switch Set 10A-6A1
	Val Set/SV set 10A-6VA1	-						-
Dual Stroke (Made-to-order)	Single Rod 10A-6Q1	Made-to-order(40 to 100)
	Double Rod 10A-6Q2	Made-to-order(32 to 125)

Note) Please click the Series Name when you need to review the details of each series.
Non-rotating Type	Click the icon as follows, to check the details.
Structure Action Style Bore Size(mm) 32 40 50 63 80 100 125 Double-acting Type Single Rod Standard Type/Switch Set 10A-6G - - Val Set/SV set 10A-6VG - - Double-acting Type Double rod Standart Type/Switch Set 10A-6GD - - Val Set/SV Set 10A-6VGD - - With Stroke Adjusting Function Standard Type/Swtich Set 10A-6GA2 - - Val Set/SV Set 10A-6VGA2 - - With Stroke Adjusting Function (Push Side) Standard Type/Switch Set 10A-6GA1 - - Val Sst/SV Set 10A-6VGA1 - -
Note) Please click the Series Name when you need to review the details of each series.
