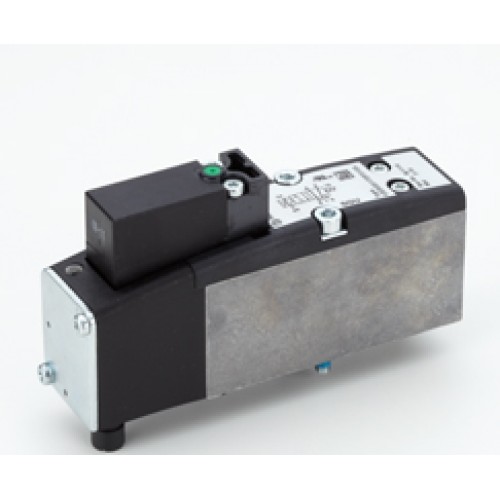

Norgren solenoid valve manifolds VS26 Series Mini ISO Valve
VS26 Series Mini ISO Valve
Item: VS26S517DF313A
Features
- Multipole or integrated fieldbus for installation flexibility
- Field expandable with single add-on stations
- ATEX
- Universal PNP/NPN 24 V d.c. Multipole
| Operation: | 5/2 |
|---|---|
| Actuation: | Sol/Spring |
| Manual override: | Push only |
| Voltage: | 24Vdc |
| Spool technology: |
Softseal spool |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 5/2 |
| Actuation: | Sol/Spring |
| Valve variant function & operation: | 5/2 |
| Voltage: | 24Vdc |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-2 |
| Spool technology: | Softseal spool |
VS26 Series Mini ISO Valve
Item: VS26S511DF313A
Features
- Multipole or integrated fieldbus for installation flexibility
- Field expandable with single add-on stations
- ATEX
- Universal PNP/NPN 24 V d.c. Multipole
| Operation: | 5/2 |
|---|---|
| Actuation: | Sol/Sol |
| Manual override: | Push only |
| Voltage: | 24Vdc |
| Spool technology: | Softseal spool |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 5/2 |
| Actuation: | Sol/Sol |
| Valve variant function & operation: | 5/2 |
| Voltage: | 24Vdc |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-2 |
| Spool technology: | Softseal spool |
Item: VS26SA11DF313A
Features
- Multipole or integrated fieldbus for installation flexibility
- Field expandable with single add-on stations
- ATEX
- Universal PNP/NPN 24 V d.c. Multipole
| Operation: | 2x3/2 |
|---|---|
| Actuation: | Sol/Spring |
| Manual override: | Push only |
| Voltage: | 24Vdc |
| Spool technology: | Softseal spool |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 2x3/2 |
| Actuation: | Sol/Spring |
| Function: | Normally closed |
| Valve variant function & operation: | 2 x 3/2 NC |
| Voltage: | 24Vdc |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-2 |
| Spool technology: | Softseal spool |
Item: VS26S611DF313A
Features
- Multipole or integrated fieldbus for installation flexibility
- Field expandable with single add-on stations
- ATEX
- Universal PNP/NPN 24 V d.c. Multipole
| Operation: | 5/3 |
|---|---|
| Actuation: | Sol/Sol |
| Manual override: | Push only |
| Voltage: | 24Vdc |
| Spool technology: | Softseal spool |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 5/3 |
| Actuation: | Sol/Sol |
| Function: | APB (All Ports Blocked) |
| Valve variant function & operation: | 5/3 APB |
| Voltage: | 24Vdc |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-2 |
| Spool technology: | Softseal spool |
Item: VS26S711DF313A
Features
- Multipole or integrated fieldbus for installation flexibility
- Field expandable with single add-on stations
- ATEX
- Universal PNP/NPN 24 V d.c. Multipole
| Operation: | 5/3 |
|---|---|
| Actuation: | Sol/Sol |
| Manual override: | Push only |
| Voltage: | 24Vdc |
| Spool technology: | Softseal spool |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 5/3 |
| Actuation: | Sol/Sol |
| Function: | COE |
| Valve variant function & operation: | 5/3 COE |
| Voltage: | 24Vdc |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-2 |
| Spool technology: | Softseal spool |
Item: VS26SB11DF313A
Features
- Multipole or integrated fieldbus for installation flexibility
- Field expandable with single add-on stations
- ATEX
- Universal PNP/NPN 24 V d.c. Multipole
| Operation: | 2x3/2 |
|---|---|
| Actuation: | Sol/Spring |
| Manual override: | Push only |
| Voltage: | 24Vdc |
| Spool technology: | Softseal spool |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 2x3/2 |
| Actuation: | Sol/Spring |
| Function: | Normally closed |
| Valve variant function & operation: | 2 x 3/2 NO |
| Voltage: | 24Vdc |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-2 |
| Spool technology: | Softseal spool |
tem: VS26SF11DF313A
Features
- Multipole or integrated fieldbus for installation flexibility
- Field expandable with single add-on stations
- ATEX
- Universal PNP/NPN 24 V d.c. Multipole
| Operation: | 2x2/2 |
|---|---|
| Actuation: | Sol/Spring |
| Manual override: | Push only |
| Voltage: | 24Vdc |
| Spool technology: | Softseal spool |
| Media: | Compressed air |
|---|---|
| Operation: | 2x2/2 |
| Actuation: | Sol/Spring |
| Function: | Normally open |
| Valve variant function & operation: | 2 x 2/2 NO |
| Voltage: | 24Vdc |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-2 |
| Spool technology: | Softseal spool |
Item: VS26SC11DF313A
Features
- Multipole or integrated fieldbus for installation flexibility
- Field expandable with single add-on stations
- ATEX
- Universal PNP/NPN 24 V d.c. Multipole
| Operation: | 2x3/2 |
|---|---|
| Actuation: | Sol/Spring |
| Manual override: | Push only |
| Voltage: | 24Vdc |
| Spool technology: | Softseal spool |
Item: VS26SE11DF313A
Features
- Multipole or integrated fieldbus for installation flexibility
- Field expandable with single add-on stations
- ATEX
- Universal PNP/NPN 24 V d.c. Multipole
| Operation: | 2x2/2 |
|---|---|
| Actuation: | Sol/Spring |
| Manual override: | Push only |
| Voltage: | 24Vdc |
| Spool technology: | Softseal spool |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 2x2/2 |
| Actuation: | Sol/Spring |
| Function: | Normally closed |
| Valve variant function & operation: | 2 x 2/2 NC |
| Voltage: | 24Vdc |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-2 |
| Spool technology: | Softseal spool |
Item: VS26SG11DF313A
Features
- Multipole or integrated fieldbus for installation flexibility
- Field expandable with single add-on stations
- ATEX
- Universal PNP/NPN 24 V d.c. Multipole
| Operation: | 2x2/2 |
|---|---|
| Actuation: | Sol/Spring |
| Manual override: | Push only |
| Voltage: | 24Vdc |
| Spool technology: | Softseal spool |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 2x2/2 |
| Actuation: | Sol/Spring |
| Function: | NO/NC |
| Valve variant function & operation: | 2 x 3/2 NO & NC |
| Voltage: | 24Vdc |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-2 |
| Spool technology: | Softseal spool |
Item: VS26SC11DF313A
Features
- Multipole or integrated fieldbus for installation flexibility
- Field expandable with single add-on stations
- ATEX
- Universal PNP/NPN 24 V d.c. Multipole
| Operation: | 2x3/2 |
|---|---|
| Actuation: | Sol/Spring |
| Manual override: | Push only |
| Voltage: | 24Vdc |
| Spool technology: | Softseal spool |
Technical Details
Hide| Media: | Compressed air |
|---|---|
| Operation: | 2x3/2 |
| Actuation: | Sol/Spring |
| Function: | NO/NC |
| Valve variant function & operation: | 2 x 3/2 NO & NC |
| Voltage: | 24Vdc |
| Pilot: | Internal |
| Manual override: | Push only |
| Protection class: | IP65 |
| Standard: | ISO 15407-2 |
| Spool technology: | Softseal spool |
