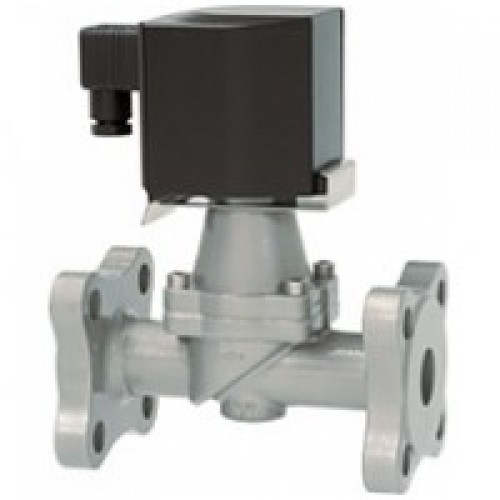

Buschjost solenoid valve without differential pressure Norgren solenoid valve Series 84140
2/2-way valves ND 15 to 100
for slightly aggressive gaseous and liquid fluids
Solenoid actuated, with forced lifting
Piston seat valves Publication 7502709.06.12.94
Steel
Flange connection PN 16 Catalogue index
Operating pressure 0 to 16 barA 12
Stainless
85 140 / 84 140 series
Description (standard valve)
Stainless steel solenoid valve for slightly aggressive gaseous
and liquid fluids
Flow direction:determined
Fluid temperature:-20 °,C to +110 °,C up to ND
-10 °,C to +110 °,C from ND
Ambient temperature:max.+50 °,
Sum of fluid- and
ambient temperature:max. +130 °,
Mounting position:optional, solenoid preferably
vertical on top, ND 65 and larger,
only vertical on top
MaterialBody:Stainless Steel
(1.4581) B.S. 318 C17
Seat seal:PTFE
Internal parts:1.4571, 1.4301, 1.4310;
Sandvik 1802 up to ND 50;
1.4104 and 1.4105 from ND 65
For contaminated fluids insertion of a strainer
A
is recommended (see accessories).
a
b
ab
Features
P Valve operates without pressure differntial (? p) High flow rate
Switching function: Damped operating
Normally closed
Characteristic data
1)
ND
Dimen-
Operating pressure Weight
k -value
Section
v
Cat no
sion
with gaseous and
table
liquid fluids up to
2
/s (cSt)
40 mm
ValveSolenoid
ValveSolenoid
[bar]
DC
AC
3
[mm]
no
XXXXXXX.XXXX
XXXXXXX.XXXX
min. max.
(Base m /h)
[kg]
no
150165.55.50101 8514200.830185 14200.8304
2001610.05.80102 8514300.84018514300.8404
2501612.56.20103 8514400.84018514400.8404
3201627.011.00104 8514500.84018514500.8404
4001631.011.80105 8514600.84018514600.8404
5001643.014.00106 8514700.84018514700.8404
6501667.036.50207 8414800.95018414800.9504
8001694.046.50208 8414900.95018414900.9504
100016144.070.00209 8415000.95018415000.9504
Solenoids Power consumption
ACDC
SolenoidDCAC
Standard
Inrush and Holding
voltages 40 Hz to 60 Hz
830122 W(R)
8304(R)C25 V
24 V
24 V
840140 W(R)
(R)
110 V
8404(R)C45 V
205 V
230 V
950180 W(R)
9504(R)C89 V
Socket acc. to DIN 43650Design acc. to VDE 0580
AC solenoid with rectifier.Voltage range °?10
100 % duty cycle
Protection class acc. to EN 60529 IP 65
1)
According to VDE 0580 at coil temperature +20 °,C
(preferably DIN 40050)
In operating the solenoid coil decrease the power
consumption appr. 30%.
Attention! Restricted temperature range for explo-
sion proof solenoids.
For technical details see catalog register °∞Solenoids
Further models
available at extra cost
XX XXX 01.XXXX Normally open, mounting posi- XX XXX XX.8402 Solenoid for higher temperature,
3)
tion: solenoid vertical on top max. fluid temperature +200 °,C XX XXX 02.XXXX Manual override mounting position: vertical, with XX XXX 03.XXXX Seat seal FPM, only ND 65 and solenoid underneath, for DC
2)
larger only XX XXX 23.XXXX Position indicator with two XX XXX XX.8406 Same as 8402, for AC only
3)
solenoid switches XX XXX XX.8436 Solenoid in protection class XX XXX 34.XXXX Enlarged closing force, advis- EEx me II T4
able at low flow rate and low XX XXX XX.8441 Solenoid in protection class
switching cycles EEx me II T3 On request Version for aggressive fluids,XX XXX XX.9502 Solenoid for higher temperature,
2
liquid fluids up to 80 mm /s, max. fluid temperature +150 °,C
Special connections e.g. ANSI, from ND 65
further versionsXX XXX XX.9540 Solenoid in protection class
EEx me ll T3 and T4XX XXX XX.8900 Solenoid in protection class
EEx de llC T4 and T5, up to
ND50XX XXX XX.8920 Solenoid in protection class
EEx d llC T4 and T5, up to
ND50On request Overexcitation, solenoid in pro-
tection class EEx d I,
EEx de I, special connections
