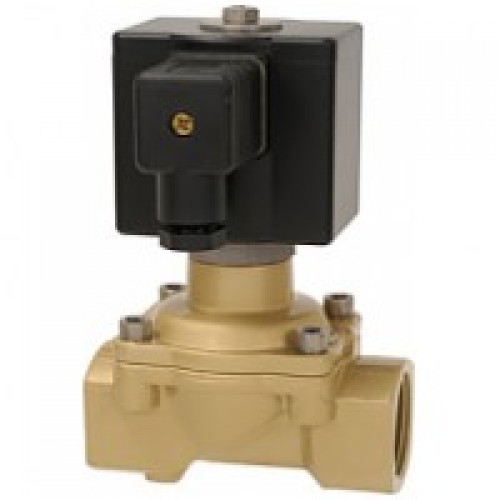

Buschjost solenoid valve without differential pressure Norgren solenoid valve Series 84360/84370

2/2-way valves DN 8 to DN 25
For neutral steam and liquids
Solenoid actuated, with forced lifting
Diaphragm valves
Internal thread G 1/4 to G 1 or 1/4" NPT to 1" NPT
Operating pressure 0 to 10 bar
Description (standard valve)
Solenoid valve for steam and hot water
Switching function:  normally closed
Flow direction:  determined
Fluid temperature:  0 !aC bis max. +150 !
Ambient temperature:  0 !aC bis max. +60 !
Mounting position:  as required,
preferably with solenoid vertical on top
Material
Body:  Brass
Seat seal:  HNBR
Internal parts:  Brass, Stainless steel
For contaminated fluids the use of a strainer upstream of the valve is recommended.
FeaturesValve operates without differential pressure (|¤ pHigh flow rateEasily interchangeable solenoid

Characteristic data
Valves
Nominal Dia-
Part Number Part Number Connection size  Operating pressure * kv-value **
Weight
meter
3
Solenoid with 1  Solenoid with 2 min. (bar)                   max. (bar) (Base m
/h) (kg)
(mm)
8436000.8302 8436000.8306 G 1/4
8 0 10 1.9 1.3
8437000.8302  8437000.8306 1/4" NPT
8436100.8302 8436100.8306 G 3/8
10 0 10 3.0 1.3
8437100.8302 8437100.8306 3/8" NPT
8436200.8302 8436200.8306 G 1/2
12 0 10 3.8 1.3
1/2" NPT
8437200.8302 8437200.8306
8436300.8302 8436300.8306 G 3/4
20 0 10 6.1 1.9
8437300.8302 8437300.8306 3/4" NPT
8436400.8302 8436400.8306 G 1
25 0 10 9.5 1.9
8437400.8302 8437400.8306 1" NPT
2
*  for gases and liquid fluids up to 25 mm /s (cSt)
State voltage [V] and frequency [Hz]
** C -value (US) !O  -value x 1.2
v v
Further Options (Valves)Solenoid 8302 / 8306
Standard voltages
On request  Further versions
DC  1 AC 2
40 Hz ¨C 60 H
24 V 24 V  ¨
Further Options (Solenoids)
 ¨ 110 V 120 V
On request  Further versions
 ¨ 230 V 220 V
Design according to DIN VDE 0580
Voltage range +/-10%
Duty cycle 100%
Protection class according to EN 60529: IP65
Electrical connector according to DIN EN 175301-803 (included)
AC with rectifier plug only
Power Consumption
According to DIN VDE 0580 at coil temperature of +20 !aC. In operation
the power consumption of the solenoid decreases by approx. 30 %.
AC 2
Solenoid DC 1
Inrush Holding
8302 14 W
8306 16 VA 16 VA

Part Number Connection size L H H1 ? B T
meter
(mm) (mm) (mm) (mm) (mm)
(mm)
8436000.830x G 1/4 12.0
8 60 117 128.5 44
8437000.830x
1/4" NPT 10.0
8436100.830x G 3/8 12.0
10 60 117 128.5 44
8437100.830x  3/8" NPT 10.5
8436200.830x G 1/2 14.0
67 117 131 44
12
8437200.830x 1/2" NPT 13.5
12.5
8436300.830x G 3/4
20 80 121 136 50
14.0
8437300.830x 3/4" NPT
8436400.830x G 1 14.0
25 95 126 147 62
8437400.830x 1" NPT 17.0
