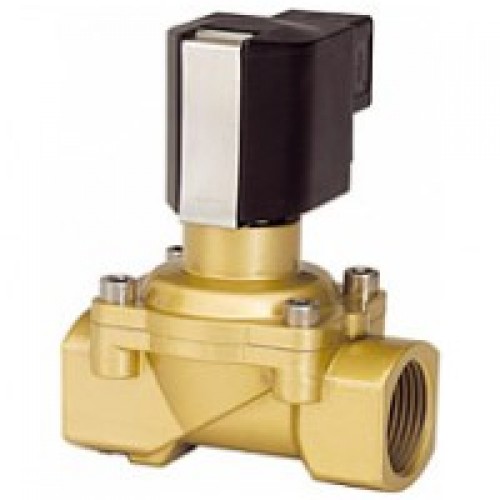

Buschjost solenoid valve without differential pressure Norgren solenoid valve Series 82540/82640
2/2-way valves DN 8 to DN 50
For neutral gases and liquid fluids
Solenoid actuated, with forced lifting
Diaphragm valves
Internal threads G 1/4 to G 2 or 1/4 NPT to 2 NPT
Operating pressure 0 to 10 / 16 bar
Description (standard valve)
Solenoid valve for e. g. air, water, oil
c
Switching function: normally closed
Flow direction: determined
Fluid temperature: ¨C10 !aC up to max. +90
Ambient temperature: ¨C10 !aC up to max. +50
Mounting position: optional, preferably solenoid
vertical on top
Material
Body: Brass (CW617N)
Seat seal: NBR
Internal parts: Stainless steel, PVDF, Brass
For contaminated fluids insertion of a strainer is recommended.
FeaturesHigh flow rateFor robust industry solutionsDamped operationSuitable for vacuumFor systems with low or fluctuating pressureValve operates without differential pressureSolenoid interchangeable without tools (c)
only solenoid 915x and 940x
Characteristic Data
Valves
Nominal Dia-
Part Number Part Number Connection Size Operating Pressure * k -value **
Weight Total
v
meter
3
Solenoid with 1 Solenoid with 2 min. (bar) max. (bar) (Base m
/h) (kg)
(mm)
G 1/4 10
8254000.9151 8254000.9154
G 1/4 16 ***
8254000.9301 8254000.9304
8 1/4 NPT 0 10 1.9 0.8
8264000.9151 8264000.9154
1/4 NPT 16 ***
8264000.9301 8264000.9304
G 3/8 10
8254100.9151 8254100.9154
G 3/8 16 ***
8254100.9301 8254100.9304
10 3/8 NPT 0 10 3.0 0.8
8264100.9151 8264100.9154
3/8 NPT 16 ***
8264100.9301 8264100.9304
8254200.9154 G 1/2
8254200.9151
10
8254200.9304 G 1/2
8254200.9301
16 ***
8264200.9154 12 1/2 NPT 0
3.4 0.9
8264200.9151
10
8264200.9304
1/2 NPT
8264200.9301 16 ***
G 3/4
8254300.9151
8254300.9154
10
G 3/4
8254300.9301 8254300.9304
16 ***
20 3/4 NPT 0
5.8 1.0
8264300.9151
8264300.9154
10
3/4 NPT
8264300.9301 8264300.9304
16 ***
8254400.9151
G 1
8254400.9154
10
8254400.9301
G 1
8254400.9304
16 ***
8264400.9151
25 1 NPT 0
8.0 1.3
8264400.9154
10
8264400.9301
1 NPT
8264400.9304
16 ***
8254500.9401 8254500.9404
G 1 1/4
32
0 16 *** 23.0 4.3
8264500.9401 8264500.9404
1 1/4 NPT
8254600.9401
8254600.9404 G 1 1/2
40 0 16 *** 25.0 4.3
8264600.9401
8264600.9404 1 1/2 NPT
8254700.9401 8254700.9404 G 2
50 0 16 *** 41.0 5.4
8264700.9401 8264700.9404 2 NPT
2
* for gases and liquid fluids up to 25 mm /s (cSt) State voltage [V] und frequency [Hz]
** Cv-value (US) !O kv-value x 1.
*** for liquid mediums and an operating pressure > 10 bar is the
maximum allowed differential pressure limited to 2 bar.
Solenoid 9151 / 9154; 9401 / 9404; Power Consumption
According to DIN VDE 0580 at coil temperature +20 !aC.
9301 / 9304
In operation the power consumption of the solenoid
Standard voltages
decreases by approx. 30 %.
AC 2
DC 1 AC 2
Solenoid DC 1
40 Hz ¨C 60 H
Inrush Holding
24 V 24 V ¨ 915x * 18 W 20 VA 20 VA
¨ 110 V 120 V
940x * 38 W 42 VA 42 VA
¨ 230 V 220 V 930x 18 W 20 VA 20 VA
Design acc. to DIN VDE 0580
* r coil only
Voltage range !à10
(with the exeption of solenoid 94xx up to 41 V AC)
100 % duty cycle
Protection class acc. to EN 60529 IP65
Attention!
Socket Form A acc. to DIN EN 175301-803 (included)
The conditions imposed on the Ex approvals lead to reduc-
AC with rectifier plug
tion of the permissible standard temperature ranges in the
cases of explosion protected solenoids.
Part Number Connec- L H H1 B* T
tion Size (mm) (mm) (mm) (mm) (mm)
8254000.915x G 1/4 12.0
60 104 92.5 44
8264000.915x 1/4 NPT 10.0
8254100.915x G 3/8 12.0
60 104 92.5 44
8264100.915x 3/8 NPT 10.5
14.0
8254200.915x G 1/2
67 108 94.5 44
13.5
8264200.915x 1/2 NPT
16.0
8254300.915x G 3/4
80 115 99.0 50
14.0
8264300.915x 3/4 NPT
8254400.915x G 1 18.0
95 124 103.5 62
8264400.915x 1 NPT 17.0
Part Number L H H1 B* T
tion Size
B
(mm) (mm) (mm) (mm) (mm)
H
8254500.940x G 1 1/4 20.0
132 186 157 92
8264500.940x 1 1/4 NPT 17.0
8254600.940x G 1 1/2 22.0
132 186 157 92
8264600.940x 1 1/2 NPT 17.0
8254700.940x G 2 24.0
160 201 167 109
P
A
8264700.940x 2 NPT 17.5
