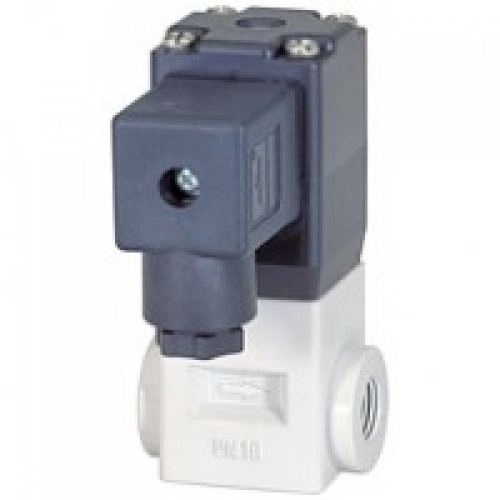

Buschjost solenoid valve without differential pressure Norgren solenoid valve Series 82080

2/2-way valves DN 3 to DN 8
For aggressive gases and fluids
Directly solenoid actuated
Seat valves with sealed core tube / medium separated
Internal thread G 1/4 to G 3/8
Operating pressure 0 to 7 bar (see table)
Description (standard valve)
Seat valve for aggressive gases and fluids
Type:   seat valve operating without differential pressure
Switching function:  normally closed
Flow direction:  determined
Fluid temperature:  ¨C10 !aC ... +110
Ambient temperature:  ¨C10 !aC ... +50
Mounting position:  as required, preferably
with solenoid vertical on top
Material
Body:  PVDF
Seat seal:   EPDM
Internal parts:   PTFE-bellows
For contaminated fluids insertion of a strainer is recommended (see B - accessories).
FeaturesSuitable for aggressive fluids Functional design Compact solenoid with integrated core tube Sealed core tube with PTFE-bellows Unsusceptible to calcification and magnetization of foreign particles

Characteristic data
Valves
Part Number Part Number Nominal  Connection sizeOperating pressure * k -value **
Weight
v
3
Solenoid with  1  Solenoid with 2 Diameter (mm) min. (bar)               max. (bar) (Base m
/h) (kg)
8208000.80508208000.80513.0 G 1/4 0 7 0.23 0.3
8208100.80508208100.80513.0 G 3/8 0 7 0.23 0.3
8208060.80508208060.80514.5 G 1/4 0 5 0.42 0.3
8208160.80508208160.80514.5 G 3/8 0 5 0.42 0.3
8208070.80508208070.80516.0 G 1/4 0 2 0.62 0.3
8208170.80508208170.80516.0 G 3/8 0 2 0.62 0.3
8208080.80508208080.80518.0 G 1/4 0 1 0.83 0.3
8208180.80508208180.80518.0 G 3/8 0 1 0.83 0.3
2
*  for gases and liquid fluids up to 80 mm /s (cSt) State voltage [V] and frequency [Hz]
** alue (US) !O  -value x 1.2
 C -v
v
v
Solenoid 8050 / 8051 Further Options (Valves)
XXXXX03.XXXX  Seat seal FPM,
max. fluid temperature +110 !a
DC  1 AC 2
40 Hz ¨C 60 H
XXXXX06.XXXX  Seat seal PTFE,
max. fluid temperature +110 !a
24 V 24 V ¨
On request   Further versions
¨ 110 V 120 V
¨ 230 V 220 V
Design acc. to DIN VDE 0580
Further Options (Solenoids)
Voltage range  !à10
100 % duty cycle
XXXXXXX.8042  Solenoid in potection class
Protection class acc. to EN 60529 IP65
x ll 2 GD EEx me ll T3   T 140 !a
Socket Form A acc. to DIN EN 175301-803 (included)
AC with rectifier plug
On request   Further versions

Power Consumption
According to DIN VDE 0580 at coil temperature
of +20 !aC. In operation the power consumption of
the solenoid decreases by approx. 30 %.
AC 2
SolenoidDC 1
Inrush Holding
8050  12 W ¨ ¨
8051 ¨ 13 VA 13 VA
Attention!
The conditions imposed on the Ex approvals lead to reduc-
tion to the permissible temperature ranges in the case of
explosion protected solenoids.

Part NumberNominal   Connection sizeB * H H1 L
Diameter (mm) (mm) (mm) (mm) (mm)
82080XX.80503 G 1/4 70 90 77 44
82080XX.80513 G 3/8 70 90 77 44
82081XX.80504.5 G 1/4 70 90 77 44
82081XX.80514.5 G 3/8 70 90 77 44
* B = max. depth
