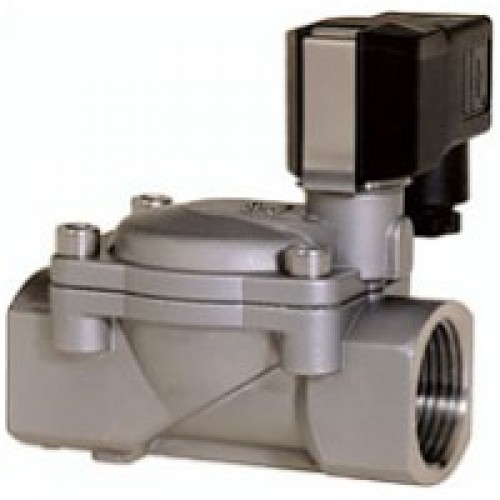

Buschjost solenoid valve with differential pressure Norgren solenoid valve Series 82730/82740
2/2-way valves DN 8 to DN 50
For slightly aggressive gases and liquid fluids
Indirectly solenoid actuated
Diaphragm valves
Internal threads G 1/4 to G 2 or 1/4 NPT to 2 NPT
Operating pressure 0.1 to 16 bar
Description (standard valve)
Solenoid valve for e.g. slightly aggressive gases and liquids
Switching function: normally closed
Flow direction: determined
Differential pressure: 0.1 bar required (0.3 bar for EPDM)
Fluid temperature: ¨C10 !aC up to max. +90
Ambient temperature: ¨C10 !aC up to max. +50
Mounting position: optional, preferably solenoid
vertical on top
Material
Body: Stainless steel (1.4408)
Seat seal: NBR
Internal parts: Stainless steel, PVDF
For contaminated fluids insertion of a strainer is recommended (see B - accessories).
Features High flow rateDamped operationFunctional compact designSolenoid interchangeable without tools (c)
Characteristic data
Valves
Nominal Dia-
Part Number Connection size Operating pressure * Overall length kv-value ** Weight
meter
3
min. (bar) max. (bar) (mm) (Base m /h) (kg)
(mm)
8273000.9101 G 1/4
8 0,1 16 60 1,9 0,47
8274000.9101 1/4 NPT
8273100.9101 G 3/8
10 0,1 16 60 3,0 0,45
8274100.9101 3/8 NPT
8273200.9101 G 1/2
12 0,1 16 67 3,8 0,50
8274200.9101 1/2 NPT
8273300.9101 G 3/4
20 0,1 16 80 6,1 0,65
3/4 NPT
8274300.9101
8273400.9101 G 1
25 0,1 16 95 9,5 0,95
8274400.9101 1 NPT
8273500.9101 G 1 1/4
32 0,1 10 132 23,0 2,60
8274500.9101 1 1/4 NPT
8273500.9151 G 1 1/4
32 0,1 16 132 23,0 2,84
8274500.9151 1 1/4 NPT
8273600.9101 G 1 1/2
40 0,1 10 132 25,0 2,42
8274600.9101 1 1/2 NPT
8273600.9151 G 1 1/2
40 0,1 16 132 25,0 2,66
8274600.9151 1 1/2 NPT
8273700.9101 G 2
50 0,1 10 160 41,0 3,62
8274700.9101 2 NPT
8273700.9151
G 2
50
0,1 16 160 41,0 3,86
8274700.9151
2 NPT
2
* with gases and liquid fluids up to 25 mm /s (cSt) State voltage [V] and frequency [Hz]
** Cv-value (US) !O kv-value x 1.
Options (Valves)Solenoid 9101 / 9151
XXXXX01.XXXX Normally open (NO) Standard voltages
DC 1 AC 2 AC 2
XXXXX02.XXXX Manual override
50 Hz 60 Hz
XXXXX03.XXXX Seat seal FPM,
24 V 24 V ¨
max. fluid temperature +110 !a
¨ 110 V 120 V
XXXXX14
.XXXX Seat seal EPDM, for hot water,
¨ 230 V 220 V
max. fluid temperature +110 !aC
0.3 to 16 bar up to DN 25
Design acc. to DIN VDE 0580
Voltage range !à10
XXXXX81
.XXXX Core tube stainless steel,
100 % duty cycle
Seat seal FPM,
Protection class acc. to EN 60529 IP65
max. fluid temperature +110 !aC
Socket acc. to DIN EN 175301-803 (included)
Attention! Standard core tube with copper shading coil
for AC voltage: solenoid with rectifier
Look for fluid resistant further options
On request Further versions
Power Consumption
According to DIN VDE 0580 at coil temperature
of +20 !aC. In operation the power consumption of the solenoid
Options (Solenoids)
decreases by approx. 30 %.
XXXXXXX.9136 Solenoid in protection class
x II 2 GD EEx m II T4 T 130 !aC
AC 2
Solenoid DC 1
with 3 m connection cable, for AC/DC
Inrush Holding
On request Further versions
9101 * 8 W 15 VA 12 VA / 7 W
9151 * 18 W 45 VA 35 VA / 17 W
Part Number
Nominal Dia- Connection B
H H1 L L1 T
? A
Solenoid with 1
meter (mm) Size (mm) (mm) (mm) (mm) (mm) (mm)
(mm)
or 2
8273000.9101 G 1/4 12.0
8 44 19.5 78.5 67.0 60 27.5
8274000.9101 1/4 NPT 10.0
8273100.9101 G 3/8 12.0
10 44 19.5 78.5 67.0 60 27.5
8274100.9101 3/8 NPT 10.5
G 1/2 14.0
8273200.9101
12 44 19.5 81.0 67.0 67 31.0
8274200.9101 1/2 NPT 13.5
G 3/4 16.0
8273300.9101
20 50 24.0 88.0 71.5 80 36.5
3/4 NPT 14.0
8274300.9101
8273400.9101 G 1 18.0
25 62 29.5 97.5 77.0 95 44.0
8274400.9101 1 NPT 17.0
8273500.9101 G 1 1/4 20.0
32 92 44.5 124.5 95.5 132 60.0
8274500.9101 1 1/4 NPT 17.0
8273600.9101 G 1 1/2 22.0
40 92 44.5 124.5 95.5 132 60.0
8274600.9101 1 1/2 NPT 17.0
8273700.9101 G 2 24.0
50 109 54.5 142.5 108.0 160 74.0
8274700.9101 2 NPT 17.5
