Buschjost Valves and systems for cleaning dust collectors Norgren Series 83930
2/2-way valves DN 25 to DN 65

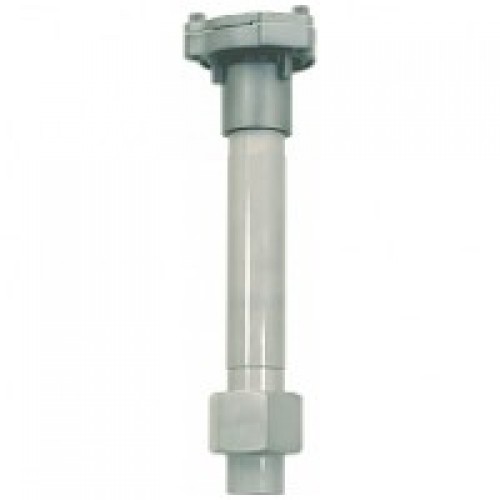

Pilot operated valve for cleaning dust filters
For tank mounting with blow-tube
Operating pressure 0.4 to 8 bar
Description (standard valve)
Controlled by external pilot unit
Process fluid: neutral gases
Switching function: normally closed
Differential pressure: 0.4 bar required
Flow direction: determined
Coil gas temperature: ¨C40 !aC to maximum of +85
Ambient temperature: ¨C20 !aC to maximum of +85
Mounting position: optional
Control port: G 1/8
Materials
Body: Aluminium
Seat seal: TPE
Blow-tube: Aluminium
Adapter: Aluminium
FeaturesHigh flow rateSimple, compact design
Ordering information
Valves
Outside dim. of Part Number Plus Connection kit
tank/profile (mm)
DN 25 DN 40 Hose connector Female thread Male thread Push-in sleeve
70 8393400. ----- + 1263648 1263641 1263634 1263628
0000.
100 1263649 1263642 1263635 1263629
00000
120 1263652 1263643 1263636 1263630
140 1263653 1263644 1263637 1263609
160 1263655 1263645 1263638 1263631
180 1263656 1263646 1263639 1263632
200 1263657 1263647 1263640 1263633
70 ----- 8393600. + 1263682 1263674 1263666 1263658
0000.
100 1263683 1263675 1263667 1263659
00000
120 1263684 1263676 1263668 1263660
140 1263685 1263677 1263669 1263661
160 1263686 1263678 1263670 1263662
180 1263687 1263679 1263671 1263663
200 1263688 1263680 1263672 1263664
Kit not required for use without connection pipe. Please then just give Order-No. for DN 25 or 40 connection.
DN 50 and DN 65 ¨C Tube and connection on reques
Characteristic data
Valves
k -value *
Part Number Nominal Diameter Operating pressure Weight
v
3
(Base m
(mm) min. (bar)09/0909/09 /h) (kg)
max. (bar)
8393400.0000.00000 25 0.4 8 28 0.26
8393600.0000.00000 40 0.4 8 74 0.9
8393700.0000.00000 50 0.4 8 104 1.6
8393800.0000.00000 65 0.4 8 121 2.0
