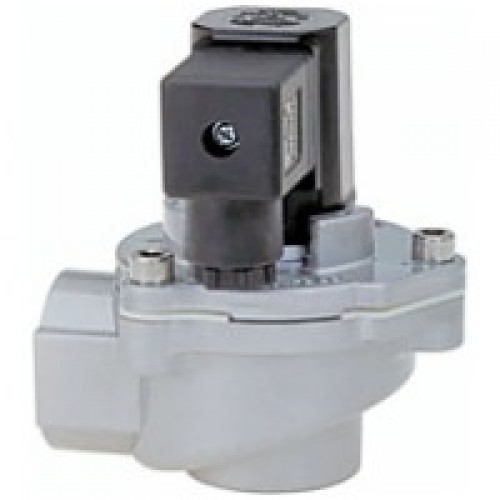

Buschjost Valves and systems for cleaning dust collectors Norgren Series 82960 82970

2/2-way valves DN 20 to DN 80
For air
Solenoid pilot operated
Internal threads G 3/4 up to G 3 or 3/4 NPT up to 3 NPT
Operating pressure 0.4 to 8 bar
Description (standard valve)
Switching function:  normally closed
Flow direction:  determined
Coil gas temperature:  ¨C40 !aC to max. +85
Ambient temperature:  ¨C20 !aC to max. +85
Mounting position:  optional, preferably solenoid
   vertical on top
Material
Body:  Aluminium
Seat seal:  TPE
Internal parts:  TPU
FeaturesHigh flow rateAll internal components captiveSimple compact designSolenoid interchangeable without toolsIntegrated silencerOne-piece diaphragm

Characteristic Data
Valves
Part Number  Nominal   Connection Size Valve Length Operating Pressure  k -value *
Weight Total
v
3
Diameter (mm) (mm) (Base m
min.                max. (bar) /h) (kg)
8296300.8171 G 3/4
20 95.0
0.4  8   18 0.50
8297300.8171 3/4 NPT
8296400.8171 G 1
25 95.0
0.4  8   22 0.47
8297400.8171 1 NPT
8296600.8171 G 1 1/2
40 135.0
0.4  8   59 1.18
8297600.8171 1 1/2 NPT
8296700.8171 G 2
50 169.0
0.4  8   80 2.02
8297700.8171 2 NPT
8296800.8171 G 2 1/2
65 169.0
0.4  8   93 2.30
8297800.8171 2 1/2 NPT
8296900.8171 G 3
80 239.5 0.4 7 172 3.93
8297900.8171 3 NPT
State voltage [V] and frequency [Hz] *C -value (US) !O  -value x 1.2
v v
Solenoid 8171 Further Options (Valves)
Standard voltages XXXXX54.XXXX  Flange version without valve body
DC 1 AC 2
XXXXX62.XXXX  Crude gas temperature version ¨C20 to +100
!a
50 Hz 60 Hz
Seat seal TPE
24 V 24 V 24 V
Ambient temperature ¨C40 to +85 !
¨ 110 V 120V
Coil gas temperature ¨C20 to +85 !
¨ 230 V ¨
XXXXX63
.XXXX  Crude gas temperature version ¨C20 to +140
!a
Design acc. to DIN VDE 0580
Seat seal TPE
Voltage range !à10
100 % duty cycle
Ambient temperature ¨C40 to +85 !
Protection class acc. to EN 60529 IP65
Coil gas temperature ¨C20 to +85 !
Socket Form A acc. to DIN EN 175301-803
On request  Further versions
Power Consumption
Further Options (Solenoids)
According to DIN VDE 0580 at coil temperature +20 !aC. In
operating the solenoid coil decrease the power consumption
XXXXXXX.9151  Solenoid version for low temperature ¨C40 !
appr. 30 %.
XXXXXXX.8176  Solenoid in protection class
x II 3 GD   EEx nA II T4   T 135 !a
Solenoid
DC 1 AC 2
Holding
Inrush
XXXXXXX.8186
  Solenoid in protection class
x II 2 GD    EEx me II T4  T 140 !a
8171
12 W 23 VA 16 VA / 8 W

r
XXXXXXX.8821
  Pulse Solenoid
On request  Further versions

Part Number  R T A B H H1 L L1
Connection  (mm) (mm) (mm) (mm) (mm) (mm) (mm)
Size
8296300.8171 G 3/4 16
34 80.0 105.5 83 95.0   50
8997300.8171 3/4 NPT 14
8296400.8171 G 1 18
34 80.0 105.5 83 95.0   50
8297400.8171 1 NPT 17
8296600.8171 G 1 1/2 22
34 124.5 166.0 136 135.0   70
8297600.8171 1 1/2 NPT 18
8296700.8171 G 2 25
34 140.0 190.5 149 170.0   95
8297700.8171 2 NPT 18
8296800.8171 G 2 1/2 25
34 140.0 205.5 160 170.0   95
8297800.8171 2 1/2 NPT 24
8296900.8171 G 3 33
34 196.0 221.0 169 239.5 143
8297900.8171 3 NPT 28

Series:     8392900
Description:     Special item
Design:     Tank Design
Connection:     DN 80
Pressure:     0.4 - 7.5 bar
Material:     Aluminium
Series:     8393900
Description:     Special item
Design:     Tank Design
Connection:     DN 80
Pressure:     0.4 - 7.5 bar
Material:     Aluminium
Series:     8589XXX
Description:     Special item
Design:     Systems
Connection:     G 1
Pressure:     0.4 - 8 bar
Material:     Aluminium
Series:     8290454
Description:     Special item
Design:     Tank Design
Connection:     G 1
Pressure:     0.4 - 8 bar
Material:     Aluminium
Series:     8296454
Description:     Special item
Design:     Tank Design
Connection:     G 1
Pressure:     0.4 - 8 bar
Material:     Aluminium
Series:     8290654
Description:     Special item
Design:     Tank Design
Connection:     G 1 1/2
Pressure:     0.4 - 8 bar
Material:     Aluminium
Series:     8296654
Description:     Special item
Design:     Tank Design
Connection:     G 1 1/2
Pressure:     0.4 - 8 bar
Material:     Aluminium
Series:     8290754
Description:     Special item
Design:     Tank Design
Connection:     G 2 - G 2 1/2
Pressure:     0.4 - 8 bar
Material:     Aluminium
Series:     82900
Description:     2/2-Way Valves and systems for cleaning dust collectors
Design:     Eckventilausführung
Connection:     G 3/4 - G 3
Pressure:     0.4 - 8 bar
Material:     Aluminium
