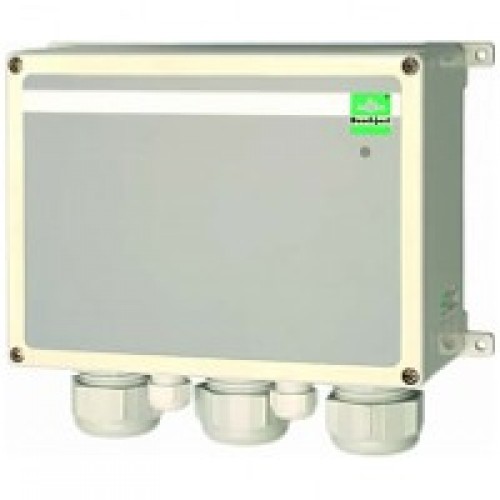

Buschjost Valves and systems for cleaning dust collectors Norgren Valve controller for industrial filters Series 83491
Valve controller for industrial filters
Description (standard valve)
The solenoid valve controller is used for the time- or differential pressure-dependent control of
solenoid valves in industrial dust extraction technology. Up to 64 valves are controlled with the base
unit and three expansion units. The base unit communicates with the expansions over a RS-485
connection. The valves are activated sequentially and are not chamber-oriented. They are monitored
for excess current and interruption. Errors are displayed on the base unit. The controller is simple
to operate through symbol labelling and LEDs for status and differential pressure indications. The
differential pressure signal is supplied as 4...20 mA value. The controller is available purely as time
controller in a version without differential pressure display. Accessories, such as the differential
pressure sensor, the dp-connection set and the valve connector with various line lengths comple-
ment the controller.
Technical Data
Power supply: 230 V AC, 50...60 Hz or 24 V DC
Current consumption: 30 VA
Operating temperature: ¨C20 !aC up to max. +50
Valve outputs: 16 (with expansions max. 64)
Displays:
7-segment display 3-digit, 14 mm height, red
Control elements: 4 function keys
Electrical connection: Spring clamp terminals
Valve current: 1 A
Versions
plastic casing: 0 valves, control unit only without analogue input
16 valves without analogue input
0 valves, control unit only with analogue input
16 valves with analogue input
Expansion unit 16 valves
Analogue input: 4!-20 mA incl. sensor suppl
Digital input: Start, recleaning and fault acknowledgement
Relay output: 1 change-over contact
Contact load 250 V AC, 10 A
Interfaces: RJ10 for PC configuration
Approval: Ex tD A22 IP65 T60!a
x II 3D Ex tb IIIB T60!aC D
Ordering Data
Part-Number Part-Number Description
Input voltage in 24 V 1 Input voltage in 230 V 2
Masterversion without dp and
8349100.0000.02400 8349100.0000.23059
without valve outputs
8349110.0000.02400 8349110.0000.23059 Masterversion without dp
8349120.0000.02400 8349120.0000.23059 Masterversion prepared for dp
8349900.0000.00000 8349900.0000.00000 dp
8349150.0000.02400 ¨ Slaveversion
Accessories
Part-Number Description
Cable glands 3 x M32 and 2 x M16
1700934.0000.00000
incl. multiple sealing insert
on request Connection cabel for expansion unit
