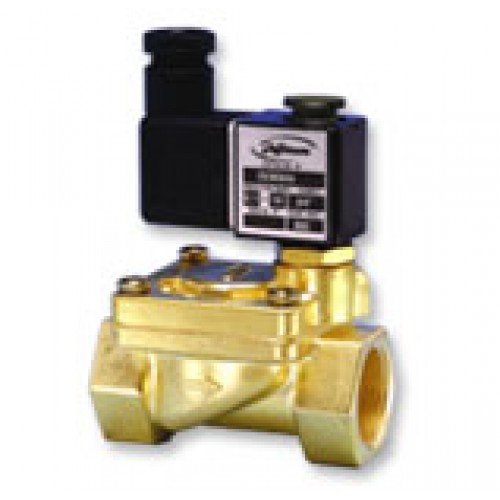

Jefferson solenoid valve 2036 Series 2-Way Solenoid Valves Item # 2036BA03T-120VAC
Features
- Normally closed and normally open
- Direct acting. No minimum differential pressure to operate
- Brass, iron, and stainless steel body.Applications
- Instrumentation. Laboratory
- Burner pilot for gas and oil
- Welding equipment. Humidifiers
| Specifications |
Series |
 |
2036 |
|
||
Valve Type |
|
Normally Closed |
|
||
Body Material |
|
Brass |
|
||
Port Size |
|
3/8 in |
|
||
Port Type |
|
Female NPT |
|
||
Operating Pressure |
|
3-225 psig .2-15 bar |
|
||
Max. Temperature |
|
176 ºF 80 ºC |
|
||
Flow Coefficient (Cv) |
|
2.90 |
|
||
Orifice Size |
|
.5 in 13 mm |
|
||
Seat Material |
|
Buna N |
|
||
Voltage |
|
120 VAC |
|
||
Coil Type |
|
GF06C |
|
||
Coil VA Inrush Amperage |
|
12.9 |
|
||
Coil VA Holding Amperage |
|
8 |
|
||
Options (Prefix) |
|
Y - Weather proof housing. YC - Water, weather and saline corrosion proof coils. Z - Explosion and weather proof housing. ZC - Explosion and weather proof coils. |
|
||
Dim. A |
|
3/8 in |
|
||
Dim. B |
|
3.74 in 95 mm |
|
||
Dim. C |
|
.51 in 13 mm |
|
||
Dim. D |
|
1.77 in 45 mm |
|
||
Dim. E |
|
2.52 in 64 mm |
|
||
Weight |
|
.7 lbs |
Item # Body Material Port Size Max. Operating Pressure Max. Temperature Orifice Size Seat Material Voltage
2036BA03T-120VAC Brass 3/8 in 225 psig 176 ºF .5 in Buna N 120 VAC
15 bar 80 ºC 13 mm
2036BE03T-120VAC Brass 3/8 in 225 psig 302 ºF .5 in EPDM 120 VAC
15 bar 150 ºC 13 mm
2036BV03T-120VAC Brass 3/8 in 225 psig 302 ºF .5 in FKM 120 VAC
15 bar 150 ºC 13 mm
2036BA04T-120VAC Brass 1/2 in 225 psig 176 ºF .5 in Buna N 120 VAC
15 bar 80 ºC 13 mm
2036BE04T-120VAC Brass 1/2 in 225 psig 302 ºF .5 in EPDM 120 VAC
15 bar 150 ºC 13 mm
2036BV04T-120VAC Brass 1/2 in 225 psig 302 ºF .5 in FKM 120 VAC
15 bar 150 ºC 13 mm
2036BA06T-120VAC Brass 3/4 in 225 psig 176 ºF 0.63 in Buna N 120 VAC
15 bar 80 ºC 16 mm
2036BE06T-120VAC Brass 3/4 in 225 psig 302 ºF 0.63 in EPDM 120 VAC
15 bar 150 ºC 16 mm
2036BV06T-120VAC Brass 3/4 in 225 psig 302 ºF 0.63 in FKM 120 VAC
15 bar 150 ºC 16 mm
2036BA08T-120VAC Brass 1 in 225 psig 176 ºF 1 in Buna N 120 VAC
15 bar 80 ºC 25 mm
2036BE08T-120VAC Brass 1 in 225 psig 302 ºF 1 in EPDM 120 VAC
15 bar 150 ºC 25 mm
2036BV08T-120VAC Brass 1 in 225 psig 302 ºF 1 in FKM 120 VAC
15 bar 150 ºC 25 mm
2036BA03T-220VAC Brass 3/8 in 225 psig 176 ºF .5 in Buna N 220 VAC
15 bar 80 ºC 13 mm
2036BE03T-220VAC Brass 3/8 in 225 psig 302 ºF .5 in EPDM 220 VAC
15 bar 150 ºC 13 mm
2036BV03T-220VAC Brass 3/8 in 225 psig 302 ºF .5 in FKM 220 VAC
15 bar 150 ºC 13 mm
2036BA04T-220VAC Brass 1/2 in 225 psig 176 ºF .5 in Buna N 220 VAC
15 bar 80 ºC 13 mm
2036BE04T-220VAC Brass 1/2 in 225 psig 302 ºF .5 in EPDM 220 VAC
15 bar 150 ºC 13 mm
2036BV04T-220VAC Brass 1/2 in 225 psig 302 ºF .5 in FKM 220 VAC
15 bar 150 ºC 13 mm
2036BA06T-220VAC Brass 3/4 in 225 psig 176 ºF 0.63 in Buna N 220 VAC
15 bar 80 ºC 16 mm
2036BE06T-220VAC Brass 3/4 in 225 psig 302 ºF 0.63 in EPDM 220 VAC
15 bar 150 ºC 16 mm
2036BV06T-220VAC Brass 3/4 in 225 psig 302 ºF 0.63 in FKM 220 VAC
15 bar 150 ºC 16 mm
2036BA08T-220VAC Brass 1 in 225 psig 176 ºF 1 in Buna N 220 VAC
15 bar 80 ºC 25 mm
2036BE08T-220VAC Brass 1 in 225 psig 302 ºF 1 in EPDM 220 VAC
15 bar 150 ºC 25 mm
2036BV08T-220VAC Brass 1 in 225 psig 302 ºF 1 in FKM 220 VAC
15 bar 150 ºC 25 mm
2036BA03T-240VAC Brass 3/8 in 225 psig 176 ºF .5 in Buna N 240 VAC
15 bar 80 ºC 13 mm
2036BE03T-240VAC Brass 3/8 in 225 psig 302 ºF .5 in EPDM 240 VAC
15 bar 150 ºC 13 mm
2036BV03T-240VAC Brass 3/8 in 225 psig 302 ºF .5 in FKM 240 VAC
15 bar 150 ºC 13 mm
2036BA04T-240VAC Brass 1/2 in 225 psig 176 ºF .5 in Buna N 240 VAC
15 bar 80 ºC 13 mm
2036BE04T-240VAC Brass 1/2 in 225 psig 302 ºF .5 in EPDM 240 VAC
15 bar 150 ºC 13 mm
2036BV04T-240VAC Brass 1/2 in 225 psig 302 ºF .5 in FKM 240 VAC
15 bar 150 ºC 13 mm
2036BA06T-240VAC Brass 3/4 in 225 psig 176 ºF 0.63 in Buna N 240 VAC
15 bar 80 ºC 16 mm
2036BE06T-240VAC Brass 3/4 in 225 psig 302 ºF 0.63 in EPDM 240 VAC
15 bar 150 ºC 16 mm
2036BV06T-240VAC Brass 3/4 in 225 psig 302 ºF 0.63 in FKM 240 VAC
15 bar 150 ºC 16 mm
2036BA08T-240VAC Brass 1 in 225 psig 176 ºF 1 in Buna N 240 VAC
15 bar 80 ºC 25 mm
2036BE08T-240VAC Brass 1 in 225 psig 302 ºF 1 in EPDM 240 VAC
15 bar 150 ºC 25 mm
2036BV08T-240VAC Brass 1 in 225 psig 302 ºF 1 in FKM 240 VAC
15 bar 150 ºC 25 mm
2036BA03T-12VDC Brass 3/8 in 225 psig 176 ºF .5 in Buna N 12 VDC
15 bar 80 ºC 13 mm
2036BE03T-12VDC Brass 3/8 in 225 psig 302 ºF .5 in EPDM 12 VDC
15 bar 150 ºC 13 mm
2036BV03T-12VDC Brass 3/8 in 225 psig 302 ºF .5 in FKM 12 VDC
15 bar 150 ºC 13 mm
2036BA04T-12VDC Brass 1/2 in 225 psig 176 ºF .5 in Buna N 12 VDC
15 bar 80 ºC 13 mm
2036BE04T-12VDC Brass 1/2 in 225 psig 302 ºF .5 in EPDM 12 VDC
15 bar 150 ºC 13 mm
2036BV04T-12VDC Brass 1/2 in 225 psig 302 ºF .5 in FKM 12 VDC
15 bar 150 ºC 13 mm
2036BA06T-12VDC Brass 3/4 in 225 psig 176 ºF 0.63 in Buna N 12 VDC
15 bar 80 ºC 16 mm
2036BE06T-12VDC Brass 3/4 in 225 psig 302 ºF 0.63 in EPDM 12 VDC
15 bar 150 ºC 16 mm
2036BV06T-12VDC Brass 3/4 in 225 psig 302 ºF 0.63 in FKM 12 VDC
15 bar 150 ºC 16 mm
2036BA08T-12VDC Brass 1 in 225 psig 176 ºF 1 in Buna N 12 VDC
15 bar 80 ºC 25 mm
2036BE08T-12VDC Brass 1 in 225 psig 302 ºF 1 in EPDM 12 VDC
15 bar 150 ºC 25 mm
2036BV08T-12VDC Brass 1 in 225 psig 302 ºF 1 in FKM 12 VDC
15 bar 150 ºC 25 mm
2036BA03T-24VDC Brass 3/8 in 225 psig 176 ºF .5 in Buna N 24 VDC
15 bar 80 ºC 13 mm
2036BE03T-24VDC Brass 3/8 in 225 psig 302 ºF .5 in EPDM 24 VDC
15 bar 150 ºC 13 mm
2036BV03T-24VDC Brass 3/8 in 225 psig 302 ºF .5 in FKM 24 VDC
15 bar 150 ºC 13 mm
2036BA04T-24VDC Brass 1/2 in 225 psig 176 ºF .5 in Buna N 24 VDC
15 bar 80 ºC 13 mm
2036BE04T-24VDC Brass 1/2 in 225 psig 302 ºF .5 in EPDM 24 VDC
15 bar 150 ºC 13 mm
2036BV04T-24VDC Brass 1/2 in 225 psig 302 ºF .5 in FKM 24 VDC
15 bar 150 ºC 13 mm
2036BA06T-24VDC Brass 3/4 in 225 psig 176 ºF 0.63 in Buna N 24 VDC
15 bar 80 ºC 16 mm
2036BE06T-24VDC Brass 3/4 in 225 psig 302 ºF 0.63 in EPDM 24 VDC
15 bar 150 ºC 16 mm
2036BV06T-24VDC Brass 3/4 in 225 psig 302 ºF 0.63 in FKM 24 VDC
15 bar 150 ºC 16 mm
2036BA08T-24VDC Brass 1 in 225 psig 176 ºF 1 in Buna N 24 VDC
15 bar 80 ºC 25 mm
2036BE08T-24VDC Brass 1 in 225 psig 302 ºF 1 in EPDM 24 VDC
15 bar 150 ºC 25 mm
2036BV08T-24VDC Brass 1 in 225 psig 302 ºF 1 in FKM 24 VDC
15 bar 150 ºC 25 mm
