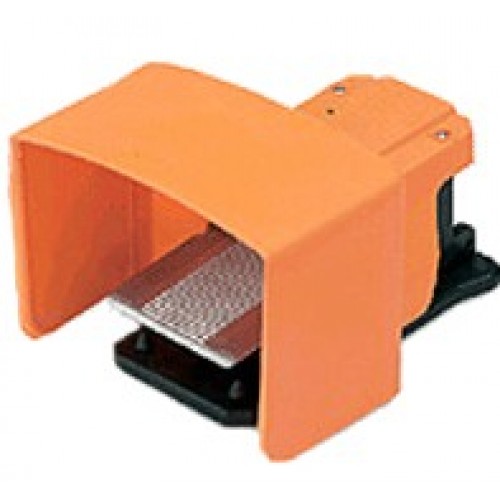

Numatics solenoid NM Series Foot Pedal Poppet Valve
For compressed air and vacuum, the Numatics poppet valves are ideal for single acting cylinders, air bellows, and vacuum material handling.
Standard Specifications:
- Cv: 0.8
- Port Sizes: 1/4 inch
- 5 port 4-way valve
- Flow Capacity: 22.74 SCFM @ 80 PSIG / 800 NI/m @ 6 bar
- Maximum Operating Pressure: 145 PSIG / 10 bar
- Temperature Range (Ambient): 14°F to +155°F / -10°C to +70°C
- Fluid Temperature Range (Ambient): 14°F to +155°F / -10°C to +70°C
Features:
- Nylon shell & steel reinforced base plate
- Die cast zinc alloy valve body
- Spring return & detented models
- Large opening for foot operation
- Cad drawings available
- High flow
- Rugged design
- Bubble tight
- Low cost
- CSA and CE approved
