Feature
- Explosion-proof terminal box turns.
- As the explosion-proof terminal box turns 340 degrees, conduit connections are easy to make.
- Universal function.
- Four modes of operation are possible, depending on the operating environment.
- Long life of five million operations or more.
- Compact and light.
- Particularly explosion-proof type valves are very compact without parallel.
Standard specification
- FLUID
- CLEAN AIR
- FLUID TEMPERATURE
- －20～60℃
- AMBIENT TEMPERATURE
- －20～60℃
- DUTY CYCLE
- 100% CONTINUOUSLY RATED
- OPERATING VOLTAGE RANGE
- ＋10，－15％
- WORKING PRESSURE , Cv. FLOW FACTOR
- See below
- ELECTRICAL SPECIFICATIONS
- See below
WORKING PRESSURE , Cv. FLOW FACTOR
| ORIFICE TYPE | ORIFICE SIZE | WORKING PRESSURE | Cv. FLOW FACTOR |
|---|---|---|---|
| BLANK | 1.6 | 0～0.7MPa | 0.084 |
| 01 | 3.0 | 0～0.4MPa | 0.22 |
STANDARD VOLTAGE
| AC | DC | |||
|---|---|---|---|---|
| V/Hz | INRUSH A | HOLDING A | V | A |
| GENERAL PURPOSE TYPE 12PG, EXPLOSION-PROOF TYPE E12PU | COIL INSULATION CLASS:H | |||
| 100/50 | 0.27 | 0.16 | 24 | 0.33 |
| 100/60 | 0.25 | 0.13 | 48 | 0.15 |
| 110/60 | 0.25 | 0.15 | 100 | 0.072 |
| 200/50 | 0.14 | 0.08 | 110 | 0.08 |
| 200/60 | 0.13 | 0.07 | 125 | 0.06 |
| 220/60 | 0.13 | 0.08 | ||
Product Images

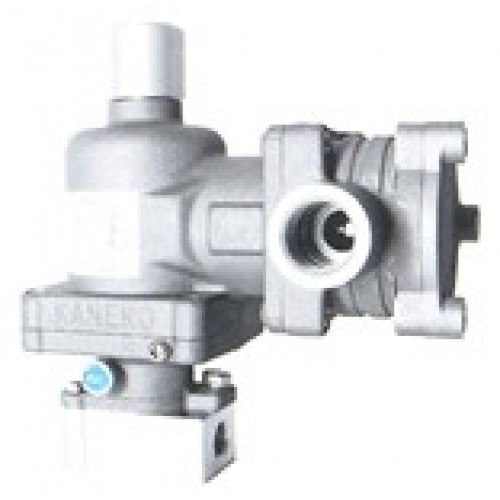

M00U GENERAL PURPOSE TYPE
| M00U-6～10 GENERAL PURPOSE TYPE | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 6 | 55 | 116 |
| 8 | 55 | 116 |
| 10 | 55 | 116 |
M00U EXPLOSION-PROOF TYPE
| M00U-6～10 EXPLOSION-PROOF TYPE | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 6 | 55 | 130 |
| 8 | 55 | 130 |
| 10 | 55 | 130 |
M00U HYDROGEN EXPLOSION-PROOF TYPE
| M00U-6～10 HYDROGEN EXPLOSION-PROOF TYPE | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 6 | 55 | 151 |
| 8 | 55 | 151 |
| 10 | 55 | 151 |
M00U DUST EXPLOSION-PROOF TYPE
| M00U-6～10 DUST EXPLOSION-PROOF TYPE | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 6 | 55 | 175 |
| 8 | 55 | 175 |
| 10 | 55 | 175 |
