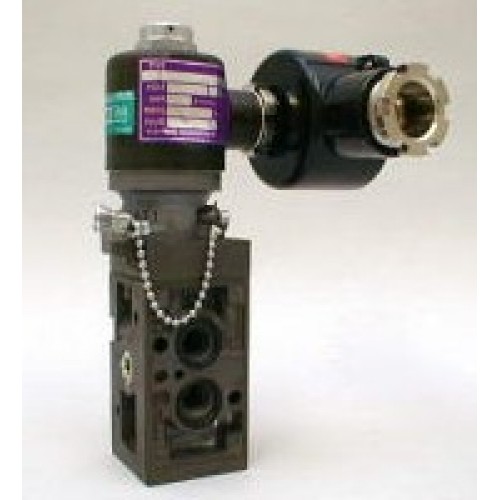

Kaneko solenoid valve 4 way MK15G SERIES single

MK15G SERIES

Feature

The main valve is of the spool type that requires no oil lubrication.

A combination of a specially configured packing and a spool enables oilless operation.

Manual button provided as standard.

All types are provided with a manual button.

Easy maintenance.

Long-life products. Engineered with prime importance on ease of maintenance, they are very simple in construction with smaller number of component parts.

Also available as three-way valves.

Four-way valves as standard. They can also be used as three-way valves by plugging one of the two outlets.

Easy to install

Troublesome piping work is unnecessary because the valve can be directly installed to a cylinder by the Namur mount method.
Moreover, the standardized connection configuration enables installation to every cylinder having a Namur mount.

Also connectable to piping.

Connectable to piping as Rc1/4 threads are cut on the inner surface of the O-ring at the outlet side.

Standard specification

FLUID
AIR , INERT GAS
FLUID TEMPERATURE
-20 ~ 60℃
AMBIENT TEMPERATURE
-20 ~ 60℃
DUTY CYCLE
100% CONTINUOUSLY RATED
OPERATING VOLTAGE RANGE
+10,-15%
WORKING PRESSURE
0.12 ~ 0.99MPa
Cv. FLOW FACTOR
0.9
ELECTRICAL SPECIFICATIONS
See below

ELECTRICAL SPECIFICATIONS

AC DC
V/Hz INRUSH A HOLDING A V A
GENERAL PURPOSE TYPE 12PG, EXPLOSION-PROOF TYPE E12PU COIL INSULATION CLASS : H
100/50 0.27 0.16 24 0.33
100/60 0.25 0.13 48 0.15
110/60 0.25 0.15 100 0.072
200/50 0.14 0.08 110 0.08
200/60 0.13 0.07 125 0.06
220/60 0.13 0.08

Product Image

MK15G GENERAL PURPOSE TYPE

MK15G GENERAL PURPOSE TYPE
NOMINAL DIAMETER MOUNTING LENGTH H
8 45 198

MK15G EXPLOSION-PROOF TYPE

MK15G EXPLOSION-PROOF TYPE
NOMINAL DIAMETER MOUNTING LENGTH H
8 45 214

MK15G HYDROGEN EXPLOSION-PROOF TYPE

MK15G HYDROGEN EXPLOSION-PROOF TYPE
NOMINAL DIAMETER MOUNTING LENGTH H
8 45 211

DESCRIPTION OF OPERATION
